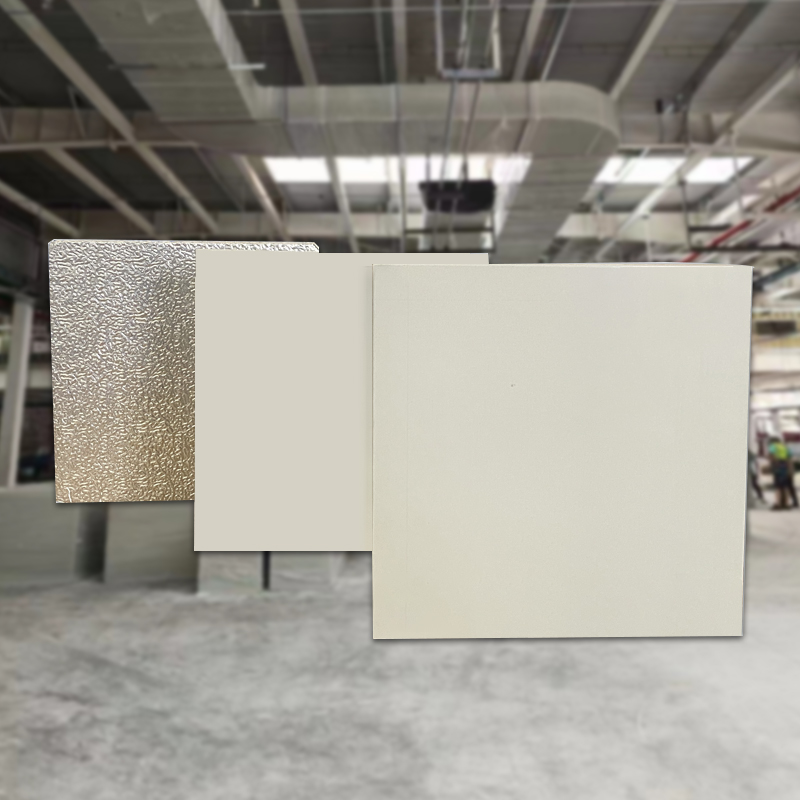

Pre insulated duct panel: Phenolic core pre insulated duct panel helps achieve LEED and green building certification

The article highlights how phenolic-core pre insulated duct panels are playing a key role in helping buildings meet LEED and green building certification standards. The core material, a rigid thermoset phenolic foam, offers superior HVAC duct insulation with very low thermal conductivity, excellent fire resistance, and moisture resistance.



As the global construction industry moves decisively toward greener, more sustainable buildings, every system within a structure — from lighting to water management to heating, ventilation, and air conditioning (HVAC) — is being reexamined for its environmental impact. Among these, HVAC systems are particularly significant due to their substantial influence on a building’s operational energy use and indoor air quality. One solution rapidly gaining traction in this sustainability-focused market is thepool mosaic tiles with a rigid thermoset phenolic core.



A Smarter Alternative to Traditional Ducting

Conventional HVAC systems typically rely on sheet metal ducts that require external insulation, leading to multi-step installation processes, added labor costs, and increased material waste. By contrast, pre-insulated duct panels combine both ductwork and insulation in a single, efficient product. At the core of this innovation lies rigid thermoset phenolic foam, a material that offers an exceptional combination of thermal, fire safety, and durability properties.

Phenolic insulation boasts one of the lowest thermal conductivities available in HVAC ductwork solutions — typically ranging from 0.020 to 0.022 W/m·K. This translates to superior thermal efficiency, reducing the amount of energy required for heating and cooling while enhancing overall building performance. As a result, this product supports LEED (Leadership in Energy and Environmental Design) and other green building certification systems that prioritize energy optimization and indoor environmental quality.



Fire Safety and Indoor Air Quality: Dual Benefits

Energy performance is only one piece of the sustainability puzzle. Modern building standards increasingly emphasize fire safety and occupant health. Phenolic-core pre-insulated duct panels excel in this area as well. With a closed-cell structure that minimizes moisture absorption, these ducts reduce the risk of condensation and subsequent mold growth, significantly improving indoor air quality — a critical factor in schools, hospitals, and residential buildings.

In terms of fire resistance, phenolic insulation is engineered for low flame spread and smoke emission, conforming to stringent international standards such as ASTM E84 and BS 476. This fire safety performance makes the product suitable for installation in sensitive environments, including healthcare facilities, laboratories, and high-rise developments, where fire containment and smoke control are non-negotiable.



Faster, Greener, More Cost-Effective Installations

Another compelling advantage of pre-insulated duct panels is their lightweight design. Being far lighter than traditional sheet metal ducts, these panels are easier and faster to install, reducing labor costs and project timelines. Additionally, the panels can be prefabricated off-site and assembled on-site, contributing to lower transportation emissions and less on-site material waste.

For developers and contractors, this not only means cost savings but also a significantly reduced carbon footprint for the project as a whole. In regions where green building codes are mandatory or financially incentivized, this streamlined product solution offers a practical way to meet compliance requirements without sacrificing performance or safety.



A Growing Global Demand

Driven by increasingly stringent building energy codes and sustainability mandates, the global demand for smart, efficient, and safe building materials is accelerating. Phenolic-core pre-insulated duct panels are now featured in a diverse range of projects — from commercial office buildings and industrial complexes to hospitals, airports, and educational institutions. Their versatility, combined with measurable benefits in energy savings, fire safety, and environmental impact, positions them as a key product in the future of HVAC system design.

As more countries adopt aggressive climate action plans and building performance standards, the market for advanced insulation technologies like phenolic-core pre-insulated duct panels is expected to expand rapidly. Architects, mechanical engineers, and developers seeking to future-proof their projects are increasingly turning to products that deliver multiple performance benefits in a single, sustainable solution.

The phenolic-core pre-insulated duct panel represents more than just an incremental improvement in HVAC system design — it embodies a forward-thinking approach to sustainable construction. By integrating insulation, fire resistance, moisture protection, and rapid installation capabilities, this innovative product is helping reshape the future of ductwork in energy-efficient buildings.
